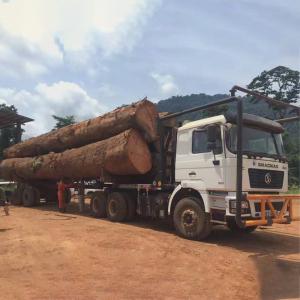

50T Tractor Truck for Heavy Duty Log and Timber Transportation in Forest Reserve

Name: 50T Tractor Truck for Heavy Duty Log and Timber Transportation in Forest Reserve
Brand: GET VEHICLES | TRAILERBULL
Price: 15 USD

Quality 50T Tractor Truck for Heavy Duty Log and Timber Transportation in Forest Reserve wholesale

Use : Truck Trailer

Type : Semi-Trailer

Material : Steel

Max Payload : 50 T

Place of Origin : China

Brand Name : GET VEHICLES | TRAILERBULL

Trailer Type : 10m Log Truck Trailer

Loading Capacity : 50,000kgs ( 50T)

Trailer Suspension : 32T Bogie Suspension

Turn Table : 25T Grade Steel Turn Table

Side Log Pillars : Block Pillars

Trailer Tires : Tubeless 13.00R22.5

Max.Speed : 50 km /h

truck type : Tractor Truck Refitting

Application : log and timber forest transport

Packaging Details : PACKED WITH TRACTOR TOG BY ROL-ROL OR SKD BY CONTIANER

Port : QINGDAO,CHINA

Supply Ability : 50 Unit/Units per Month

MOQ : 2 units

Price : $15,000.00 - $20,000.00/units

Contact Now

Product Paramenters

Huge Log Truck Trailer

This Log Trailer is designed for the Super Heay and High Diameter Log Delivery from the forest, there are two refitting parts, one is for the Front Pull Tractor Truck , the other is the rear Trailer system. Tractor parts connect with the rear trailer with pipes whcih can work for more than 15m to 30 m.

Huge Log Truck Trailer
1. Model Of The Truck Trailers (Oem No.)					GET.9SP.HLOG.2/50
This Log Trailer is designed for the Super Heavy and High Diameter Log Delivery from the forest, there are two refitting parts, one is for the Front Pull Tractor Truck , the other is the rear Trailer system. Tractor parts connect with the rear trailer with pipes which can work for more than 15m to 30 m.
2. General Parameter Of The Log Trailer
Overall Length	8 .78 ft	2,675 mm	This is just the Size of the Trailer Main Structure
Overall Width	8 .37 ft	2,550 mm
Overall Height	5 .25 ft	1,600 mm
Tare Weight	14,340 Ibm	6,500. kg
Payload	110,240 Ibm	50,000. kg	Option : Customized to 70T 80T Dumper
3. Specal Log Pillar System
U shape Log pillars hold system equipment with Turn Table for the Turning , with Sawteeths at the Cross Beam Holder which Pin Joint with the side pillars to keep the Openning Angle to adjust the loading quantity.
Specail Designed Removeable Side Pillars for Huge Logs			Left	Triangle Type 500mm
Specail Designed Removeable Side Pillars for Huge Logs				Right	Triangle Type 500mm
Turn Table for the pillars	25 Grade for Pillar system rolling
4. Truck Trailer Chassis Running Gears and Safty Valves
Trailer Suspension	32 T Capacity Bogie Suspension with Leaf Spring 16 pcs
Axles	150mm (6") Square axles with 13T/15T/16T/20T capacity, 10 HUB piloted hubs with outboard mounting cast steel drum (ABS Options) Option : Disc Type Manufacturer: FUWA ,Options: BPW,SAF
Tires	Tubeless Tires ,13.00R22.5 *8 Sets Manufactuter: Double Coin, Triangle, Michelin, Firestone
Painting	Electrophoretic spraying, that is, water-based coating, can be dissociated into a water-soluble film-forming material which can form a film in water, and swims to the opposite electrode in a direct current electric field, and precipitates on the surface of the object to form a coating film

50T Tractor Truck for Heavy Duty Log and Timber Transportation in Forest Reserve

Pulling Tractor truck Refitting					GET9502LOGT
1. General Parameter Of The Log Trailer
Overall Length	. ft		Per the Tractor beam
Overall Width	8 .37 ft	2,550 mm
Overall Height	5 .25 ft	1,600 mm
Tare Weight	4,410 Ibm	2,000. kg
Payload	110,240 Ibm	50,000. kg	Option : Customized to 70T 80T Dumper
2. Specal Log Pillar System
U shape Log pillars holde system equipment with Turn Table for the Turning , with Sawteeths at the Cross Beam Holder which Pin Joint with the side pillars to keep the Openning Angle to adjust the loading quantity.
Specail Designed Removeable Side Pillars for Huge Logs			Left	Triangle Type 500mm
Specail Designed Removeable Side Pillars for Huge Logs				Right	Triangle Type 500mm
Turn Table for the pillars	25 Grade for Pillar system rolling
Cab Protection Frame	Steel Pipes assemble to the Cab outside to protect the cab in the forest working
Trailer Couple	Auto-Couple Hook Type

Your Benefits

CUSTOMIZED DESIGN

3D DESIGNING - CATIA • The optimization for durability calculation and accuracy increasing • Assembly processing display 2D DESIGNING - AUTOCAD • Description, overview and detail calculation of products • Dimension and tolerance display

BEST STEEL CONSTRUCTION

Material choose the High strength low alloy steel with 350 mpa yield strength is used for welded I-beam and 235 mpa in other fabricated parts and the original ALCOA aluminum for the tanks and dry logistic box.

AXLE SYSTEM

High quality axle from world brand of BPW, SAF TO China Famous brand FUWA, L1 with strong bearing capacity from 9T to 20T and ABS options to fit full demand of requirements.

SUSPENSION SYSTEM

High quality suspension from world brand of BPW, SAF TO China Famous brand FUWA, L1, from Leaf-spring plate type, bogie type to Air-Spring type and rubber type to fit different requirements of the cargo delivery condition

TIRES AND RIMS

High quality tires from world brand of MICHELIN, BRIDGESTONE, PIRELLI to China Brand DOUBLE COIN, TRI-ANGLE, Coupled with RIMS
from STEEL to ALUMINUM.

SAFETY CONTROL SYSTEM

World brand brake system WABCO Valves with ABS or EBS to keep the trailers under control at any cases.

Production Workshop
