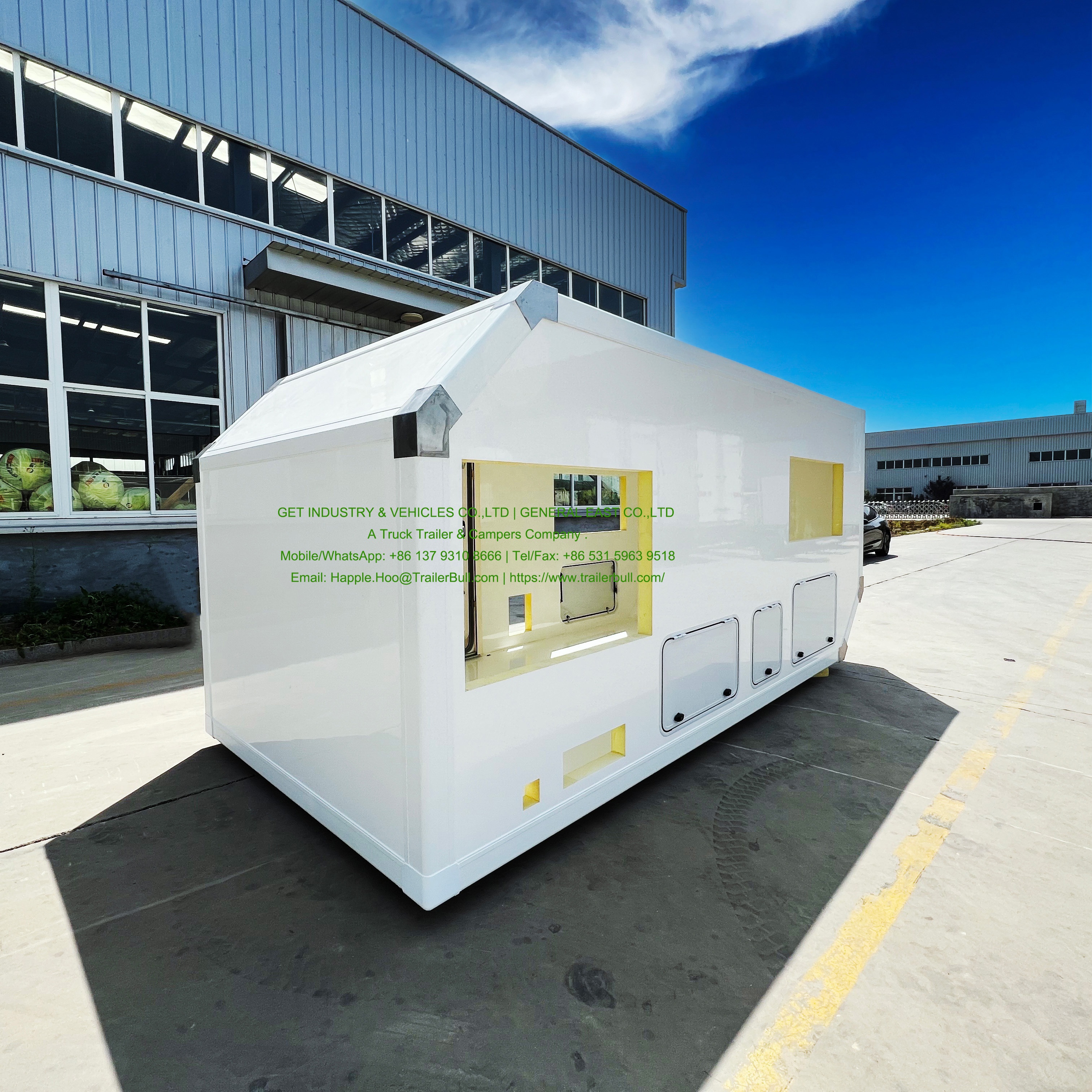

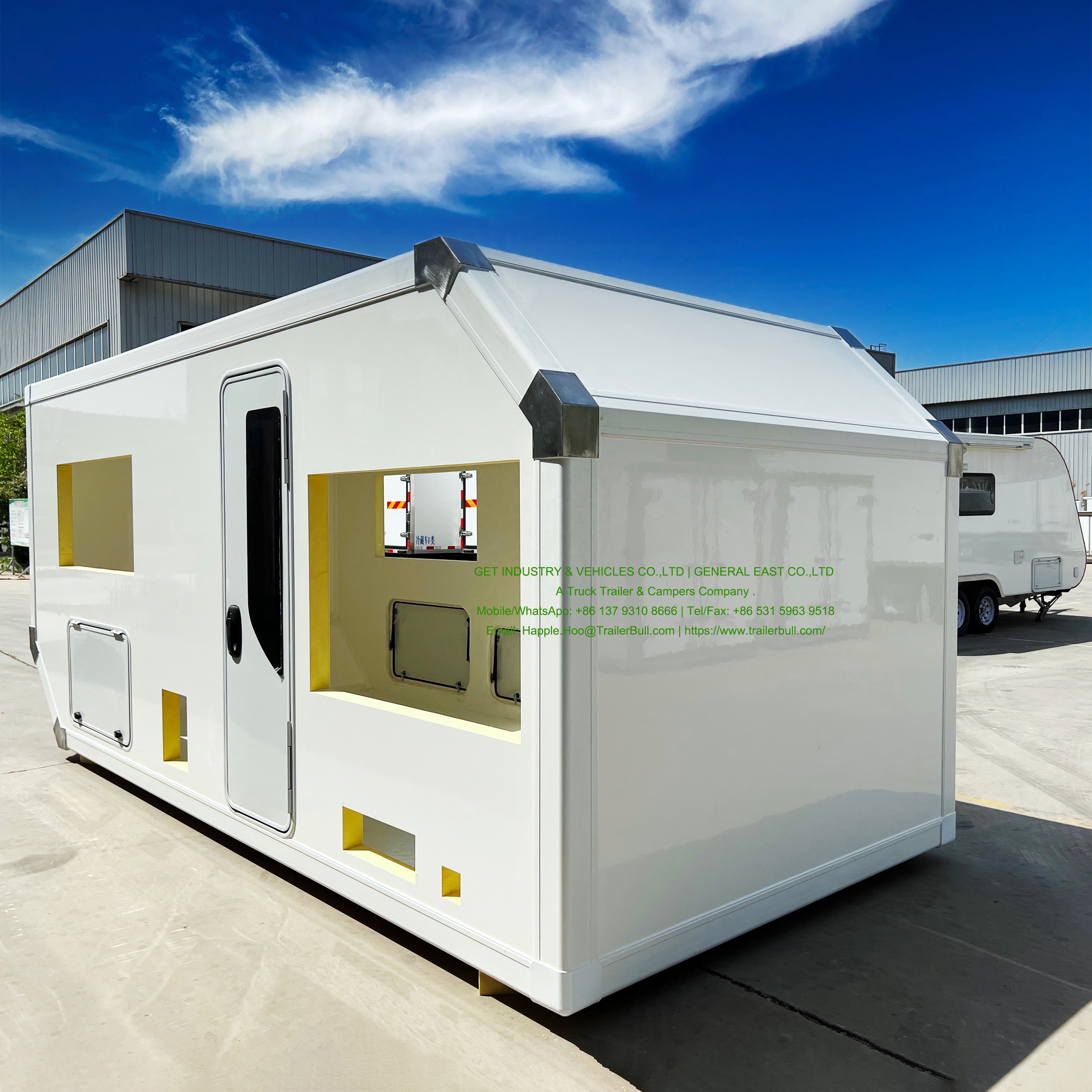

4.9x2.2x2.2m Self-Support FRP Monoblock Extrusion Camper Box for Overland Travelling

Name: 49x22x22m SelfSupport FRP Monoblock Extrusion Camper Box for Overland Travelling
Brand: GET INDUSTRY
Price: 18 USD

Quality 4.9x2.2x2.2m Self-Support FRP Monoblock Extrusion Camper Box for Overland Travelling wholesale

Max Payload : 8T

Place of Origin : China

Size : 4960x2200x2200mm

Brand Name : GET INDUSTRY

OE NO. : GET.6EXP.QJ.49

Camper Design : Individual Camping Box

Camper Size : 4960x2200x2200mm

Ability of the box : Off Road , leave the beaten track

Wall Inner & Outer Skin : FRP /GRP : glassfibre reinforced polyester.1.5~2.5mm

Thermo Material : XPS 40-45kg/cbm

Super Structure : self-supporting body, No Need of SteelFrame inside

Box Thermo Insulation K-Value : Approx .0.295 W/㎡ ℃

Fire-Retardant Grade : "B" , According to EN 13501-01

Working Temperature Range : -30 ~ + 60 ℃

Application Range : Overland Expedition Travelling

Packaging Details : fully assembled or as a self-build kit ( Flat-packed).

Port : QINGDAO,CHINA

Supply Ability : 50 Unit/Units per Month

Price : $18,000.00/units 1-1 units

Contact Now

Product Overview

Corner Cutting Individual Truck Camper Box

The Corner Cutting Box concept allows you to realize almost any shape for your RV project. 1. Slants for optimum exit angles at the rear or for improved aerodynamics, pulled down entrances, lowered rear garages and integrated awnings. Drawn-in sidewalls or integrated side skirts are also possible - each feature is uniquely designed tog with the customer. 2. Similar to the “Base”, the Corner Cutting-Box is available in lengths up to 14.8 m with a variety of wall thicknesses and laminates / surfaces. 3. Corner Cutting box composite RV boxes are available in aluminum or FRP. 4. The integrated Plywood Timber and/or Steel ,Aluminum Embeded in the floor panel with connecting points for the suspension and optimal stiffness, as well as the reinforced rear wall to attach a rear carrier or moving platform are Optional. 5. An optional double floor for installing water tanks, batteries, and different floor heating solutions is available. This will optimize weight distribution and improve frost resistance. The Corner Cutting Box can also be fitted with Slide-Outs to enlarge the interior space. 6. A full range of doors, windows, hatches and skylights is available at prices tailored to your requirements.

DESIGN & ORDER MEASUREMENTS REQUEST

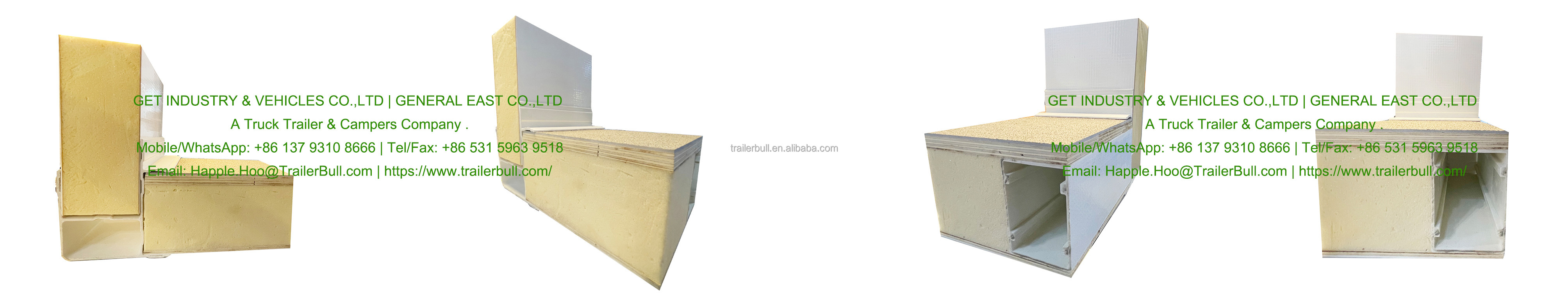

Composite Sandwich Panels

ITEM

DESCRIPTION

EXTERIOR SIZE (MM)

INTERIOR SIZE(MM)

1.1

Box Type

CHINA FRP SANDWICH PANEL

4,425

2,200

4,258

2,100

2,033

For

EXPEDITION BOX

Volume

18 m³

14.5 ft

7.0 ft

7.1 ft

14.0 ft

6.4 ft

7.1 ft

Panel Area

47 ㎡

Shape Design

Front+Rear Corner Cutting

FCH

TCH

535

21.1 in

0.0 in

FRP 2mm/PU:40kg/m³±2 FRP Panels (Excluding Floor)

4.9x2.2x2.2m Self-Support FRP Monoblock Extrusion Camper Box for Overland Travelling

1.3

Panel Details

Side Wall Panel

50mm

FRP + XPS +FRP

Front Wall Panel

50mm

FRP + XPS +FRP

Rear Wall Panel

50mm

FRP + XPS +FRP

Roof Wall Panel

83.50mm

FRP + XPS +FRP Embeded 5 lines of PVC Tube for wire

Floor Panel

83.50mm

FRP+Plywood 4mm + XPS +FRP. With Cross Beam Embeded

Rear Corner Cut

50mm

FRP + XPS +FRP

Front Corner Cut

50mm

FRP + XPS +FRP

Super Structure

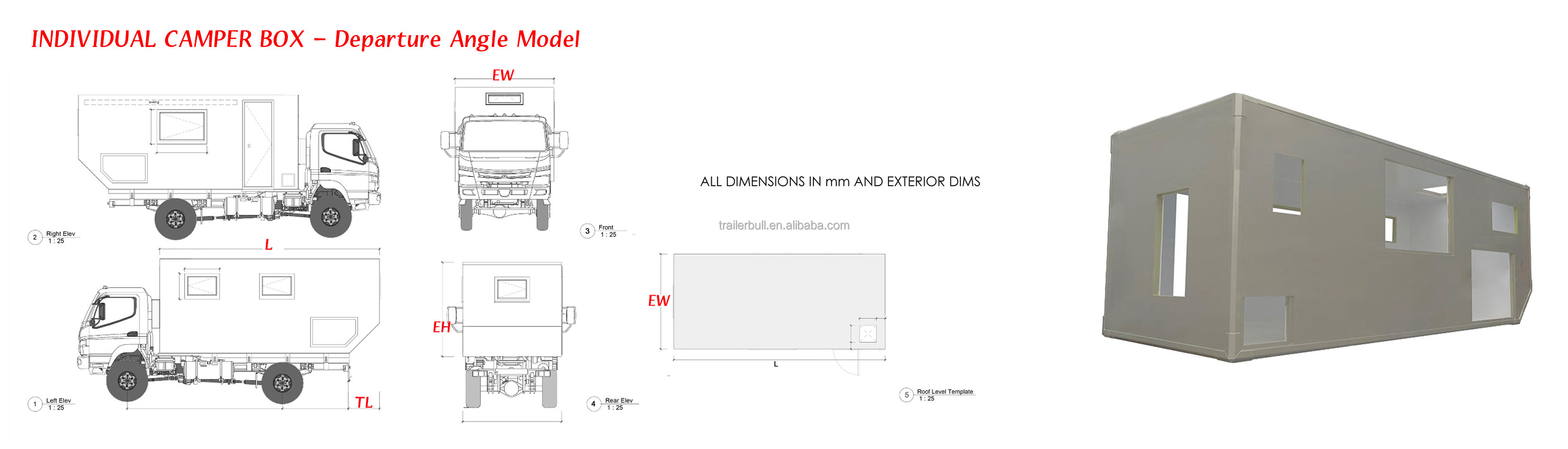

Right elevation

Interior elevation

Finished Truck elevation

BOX INSTALLATION PROCESS

Your Benefits

FRP Modular Composite Sandwich Panel Box

Windows Side Elevation

Tail Elevation

Door Side Elevation

Brief Instruction

GET INDUSTRY TRUCK CAMPERS

GET.6EXP. LIGHT AND STRONGER MODULAR BOX BY TRAILERBULL TRAILERBULL engineered expedition box types are available to accommodate your ideas about Expedition Vehicles. Though the basic needs of globetrotters are much the same, their demands on the vehicle itself differ lone traveler, twosome, family, class of driving license, destination, infrastructure, terrain, duration of the journey … All these criteria ultimately determine the optimum vehicle and the suitable chassis. GET.6EXP can translates these criteria into 3 Expedition box models geared to these different requirements thanks to our durable GRP Sandwich panel composite technology offers top performing strength. TRAILERBULL With different wall panels (FRP-Pie Modular Panel, FRP-Plast Sandwich Panel) to meet all the popular chassis and requirements in the world and already have proven themselves on the actual journeys of many satisfied cust.

FAQ

Q '-What’s the material of your Truck Camper body?
A.- We can produce FRP (Fiberglass Reinforced Plastic), PPGI steel and Aluminum composite with XPS/PU insulation Sandwich panels for the truck camper box. The Core Material can be PU, XPS.

Q '- If want the price, what should offer us the information?
A.-You need offer us the material, size (LxWxH and the thickness of the panel) and quantity of the truck body as the basic
information. The sketch or the design drawing is much appreciated.

Q '-Can you pre-cut openings for windows and doors?
A.-We can offer this service with cost as we have embedded strengthen parts inside, but that will be confirmed before producing. your own Openings can easily be cut with a jigsaw and plastic rated blade, but the embedded strengthen parts cannot make. So if it will work in really bad expedition, you'd better let us pre-cut openings for windows and doors.

Q '-Can you do departure angles?
A.-Yes, we have two sizes of the box shape, one is the standard square shape, the other is the departure angle design. Please mark the desired angle (including dimensions) in the quoting template if you need.

Q '-Can you design subframes?
A.-We have the service of this, but you need supply the full chassis layout to us in advance.

Q '-Can I use different windows and doors than what’s listed on your specification?
A.-Yes. However, we highly recommend our windows and doors as they work in perfect balance with our camper bodies.

Q '-Can I order a camper body with an alcove?
A.-Yes. Please ask us for our alcove quoting template.

Q '–What’s included in the shipment?
A.-1. CKD type with All panels cut to size (other than departure angle), 2. CBU type with assembled box per your requirements.

Q '–Can you help with the interior layout?
A'–No. We are solely a camper body supplier, not a full-scale outfitter/design office.
